Established in Tokyo, Japan in 1976, MICRON Corporation has been striving to provide great products and achieve the best quality to improve the health and well-being of people all over the world. Take a tour of our innovative measuring devices here in our online store. For our handpieces, visit www.micdent.com.

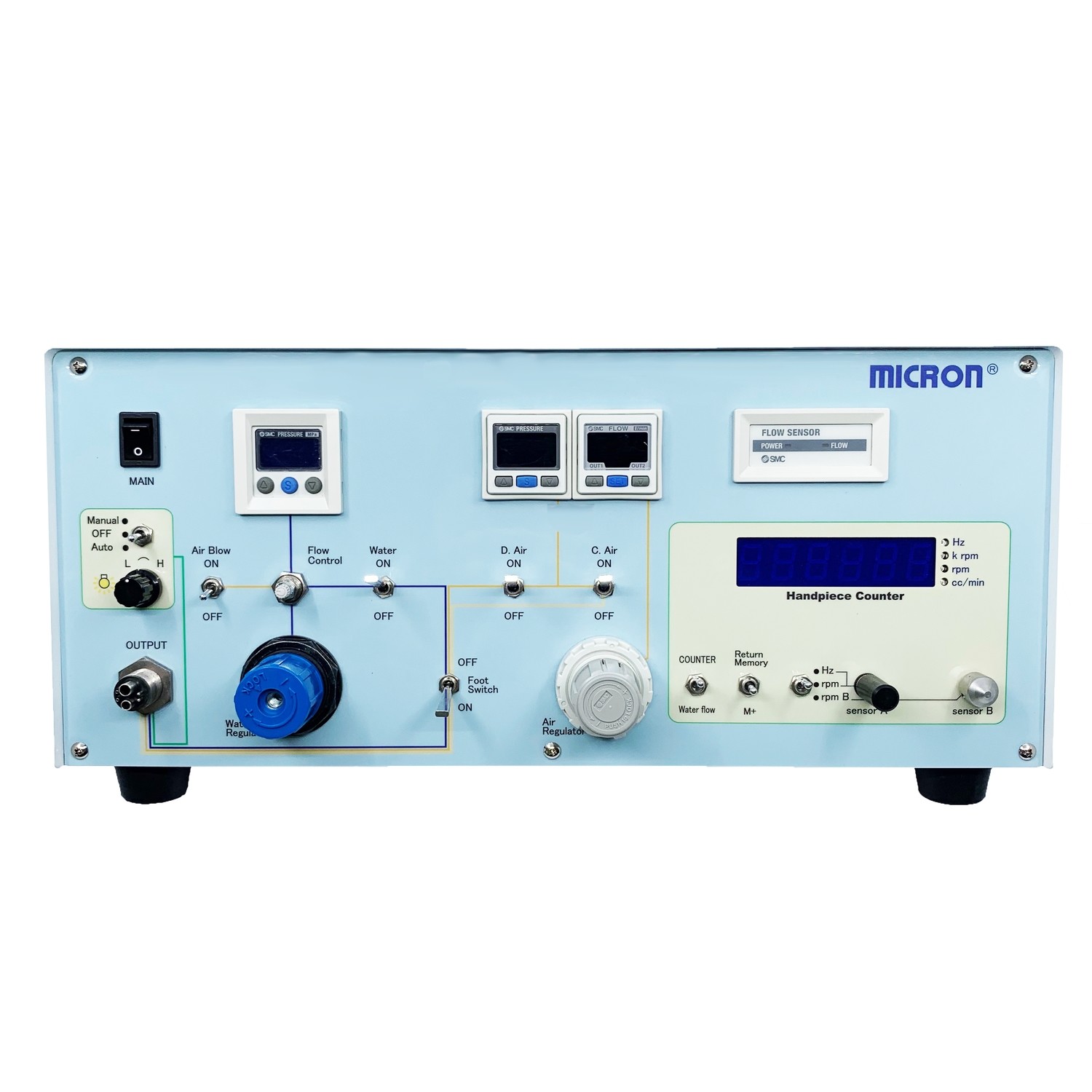

Q-UNIT has operation-checking and measuring functions, which is very useful for testing, inspection, and maintenance of dental handpieces. (Controllers of air pressure, water pressure, and water volume / on-off functions of driven air, cooling water, chip air, and illumination / air-blow system to discharge residual cooling water in handpieces. )
Q-UNIT has 2 sensors to measure revolution and frequency. Sensor A measures from 5,000 to 999,000 rpm and from 1 to 200,000 Hz. Sensor B measures from 1 to 5,000 rpm.
The ISO 9168 Type C connector, accepts various standardized handpieces, such as air turbines, air motors, and air scalers. The connector attachees to different manufacture's original couplings.
Measurement Range (Revolution) | Sensor A: 5,000 rpm to 999,000 rpm Sensor B: 1 rpm to 5,000 rpm |
Measurement Range (Frequency) | 1 Hz to 50,000 Hz |
Power source | AC 100 to 240V, 50/60Hz |
Dimensions | H: 180 mm W: 380 mm D: 250 mm |
Weight | 5.0kg |
What's in the box | Q-UNIT x 1, Measuring bur (Φ 2.35mm x 1, Φ 1.60mm x 1), Rubber cup x 1, Sensor A x 1, Magnet x 1, Joint coupling x 2, Tube x 2, Handpiece Tube x 1, Foot switch x 1, Electric cord x 1, IFU x 1 |
Click HERE to download the catalogue!
Note: Q-UNIT is manufactured on request only. Modifying connector/displays, or adding functions are possible. Please contact us for further information or quotation.
■ Calibration Service
We provide calibration services for our frequency / revolution measuring devices at our plant. After the service, we will issue a calibration certificate upon request. We recommend that our frequency / revolution measuring devices are calibrated at least once a year to ensure proper functionality and continued accuracy. Please contact us for more details or pricing.
■ One Year Warranty
All our products have a one year warranty.
