Established in Tokyo, Japan in 1976, MICRON Corporation has been striving to provide great products and achieve the best quality to improve the health and well-being of people all over the world. Take a tour of our innovative measuring devices here in our online store. For our handpieces, visit www.micdent.com.
HPW-2 is employed during R&D, testing, quality control in factories, maintenance of delivered products, etc. This portable device is accurate at measuring revolution and frequency.
Measure revolution or frequency by presenting the sensor to the target object. You can use HPW-2 in a free angle and position without touching the moving object.

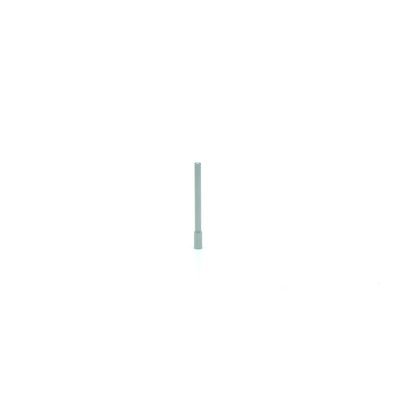

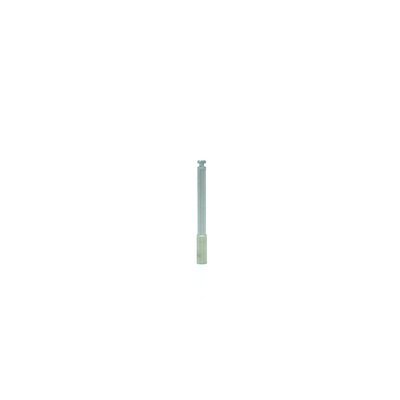

Measure from 5,000 to 999,000 rpm by inserting one of the attached measuring burs to a chuck of the target object. Suitable for revolution measurement of instruments, such as dental air turbines and micro motors.
Measure from 1 to 200,000 Hz by magnetizing the target object and bringing it to the sensor. Suitable for frequency measurement of instruments, such as dental air scalers and ultrasonic scalers.
Measurement Range (Revolution) | 5,000 rpm to 999,000 rpm |
Measurement Range (Frequency) | 1 Hz to 200,000 Hz |
Revolution detecting method | Induction power pick-up system |
Display | Decimal Numeration 4-digit LCD |
Power source | SR-44 silver oxide button cell battery x 2 |
Dimensions | H: 75 mm W: 117 mm D: 18 mm |
Weight | 120g (incl. button cell battery x 2) |
What's in the box | HPW-2 x 1, Measuring bur (Φ 2.35mm x 1, Φ 1.60mm x 1), Button cell battery x 2, Magnet x 1, Sensor x 1, Carrying case x 1, IFU x 1 |
Click HERE to download the catalogue!
■ Calibration Service
We provide calibration services for our frequency / revolution measuring devices at our plant. After the service, we will issue a calibration certificate upon request. We recommend that our frequency / revolution measuring devices are calibrated at least once a year to ensure proper functionality and continued accuracy. Please contact us for more details or pricing.
■ One Year Warranty
All our products have a one year warranty.
Mitsutoshi Hachino
Founder
■ Global Japanese Innovator
Established in Tokyo, Japan in 1976, Micron is known world wide in the dental industry for being meticulously detailed and transparent about business. We have full autonomy and involvement from R&D > Production > Sale of product > After-sales / Quality, all done in Japan. Micron’s innovations will always reflect our commitment to medical science and the betterment of society.
■ Industry first technology
Micron’s patented air-driven sonic vibration system and/or Aerodynamics have been utilized in all our products (air scalers, endodontic devices, air polishers, and three-way syringes).
– The revolutionary Micron SSS, is the first air scaler in the world with a 17,000Hz high frequency, creating comfort beyond audible range.
■ Safety and reliability
Micron prides itself on providing the highest quality products. We always take into consideration clinical benefits to users and patients. ISO13485 certification (since 2005) officially and legally validates our workmanship.
